PIPELAY FIRING LINE DESIGN FOR 1000T DLB HAMIZAKU

Project

PRINCIPAL DESIGN CONSULTANT – OME Synergy Sdn Bhd (Malaysia)

Project Description

A new DLB HAMIZAKU with 1000Ton Crane was to be built in Malaysia. The principal consultant to this project was OME Synergy Sdn Bhd.

ZEE’s Scope of Work

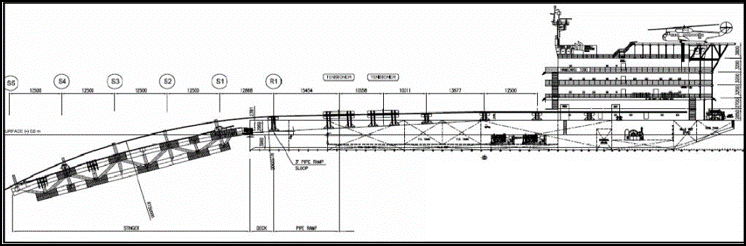

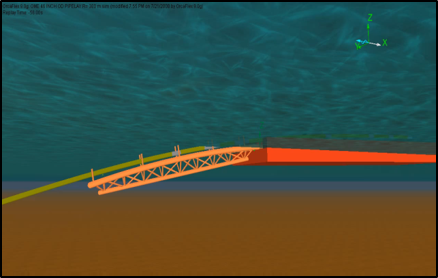

ZEE’s scope was to design the pipelay “firing line” including the floating stinger.

  • Conceptual and detail engineering to achieve top cord curve and stinger configuration,
  • Floating Design & Stability,
  • Detail design,
  • Hitching methodology,
  • Hitch design,
  • Barge deck strength design,
  • Assisting in 3rd party certification.

OTHER STINGER DESIGNS COMPLETED


  • DLB Enterprise III, TL Offshore (Malaysia)
  • DLB KUBER, Punj Lloyd (India)
  • DLB MAHESH, Punj Lloyd (India)
